How to Frame Windows for Barns

Installing a window into your existing barn can be a time-consuming process.
Framing barn windows is usually easier than framing home windows.Framing barn windows is usually easier than framing home windows.
The necessary steps to complete the installation are not highly technical and can be completed by most individuals with basic carpentry skills. Before beginning work on your window frame installation, check your local weather report. Work on the driest, most sunny day in the forecast to ease the process of constructing a window frame and prevent harsh weather elements from getting inside of your barn. Have your window or barn sash on hand prior to cutting a hole in your barn wall.

Step 1

Measure the width and height of your window with a measuring tape. Walk inside of the barn and determine the approximate location where the new window will be installed. Choose a location for the window that does not intersect with any existing studs. Add 2 inches to each the height and width of your window and use the new measurements to mark the outline of the window onto the wall. Hold the spirit level to the appropriate place and use its edge as a guide to create straight, even lines for the window outline.

Step 2

Drill a 3/4-inch hole into each corner of the window site. Use the outline you made in Step 1 to locate the exact location of each corner. Drill completely through the wall, until you can see outside through the hole. It is important that the holes go entirely through the wall, because you will be using these holes to signify the location of the window frame from outside of the barn. When all four holes are drilled, go the exterior of the wall.

Step 3

Locate the four holes on the outside of the wall. Setup a ladder if the window is located higher than you are able to comfortably reach. Use the spirit level as a guide to connect the four holes with a pencil and mark the outline of the window opening. Use the pry bar to remove any nails that may intersect the cut lines.

Step 4

Set your saw to a cut setting that is 1/2 of an inch wider than the thickness of the wall. This will vary from barn to barn. Cut out the window frame opening, following the outlines exactly. Pry the cut section of wall out with a pry bar. Use caution so the section does not cause injury or property damage if it falls to the ground. If possible, remove the section with your hands.

Step 5

Build the frame of your window by cutting two pieces of 1-by-4-inch lumber to the exact length of the width of the opening that you cut into the wall. Cut an additional two pieces of 1-by-4-inch lumber to the exact length of the height of your window. Nail the top and bottom 1-by-4 sills to their respective edge of the window opening in the wall. Nail the two side pieces to finish the frame. The frame should be nailed to the opening so the frame has a depth of 4 inches and is 1 inch thick.

Step 6

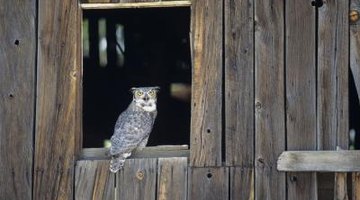

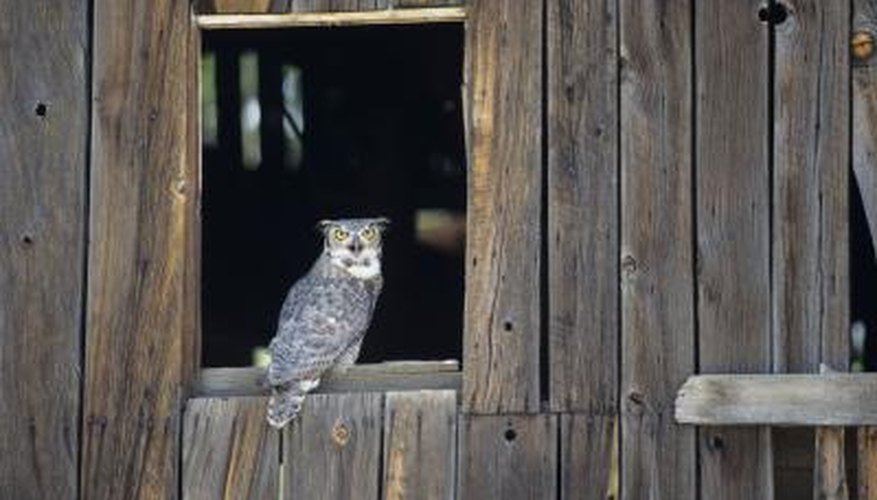

Many barn windows can be left open or without glass.

Install a window into the frame or leave the window opening empty, depending on the use and the style that you are trying to accomplish.

Things You Will Need

  • Measuring tape
  • 4-foot spirit level
  • Pry bar
  • Drill
  • 3/4-inch drill bit
  • Ladder
  • 1-by-4-inch lumber
  • 16d Nails
  • Hammer

Warning

  • If you cannot place your window in a location that does not intersect with studs, you will need to add additional weight-bearing studs around the window opening.
