How to Make a Perfect Right Angle on a Fence

If you are installing a fence to enclose a square area, you want the corners to form 90 degree angles.

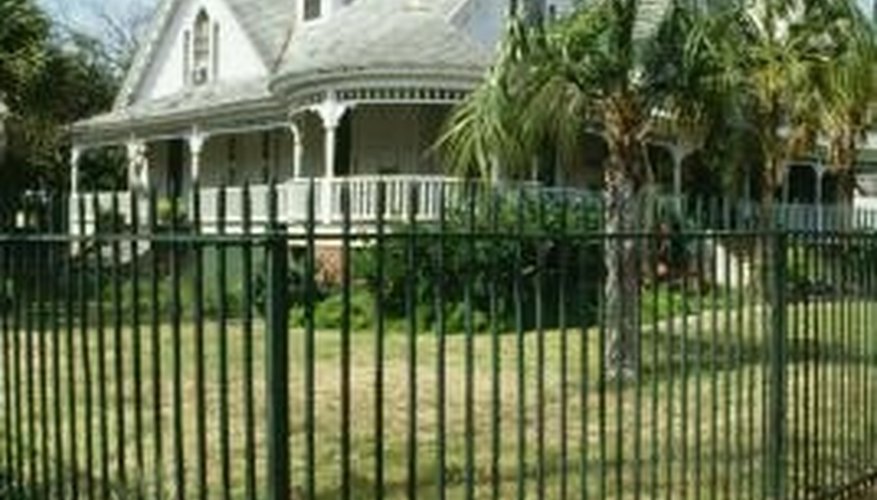

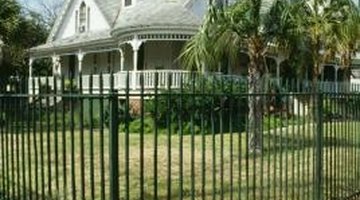

Plan your right angle before installing a fence.Plan your right angle before installing a fence.
An effective method of plotting a perfect right angle on a fence is the 3-4-5 triangle method. This involves placing tape measures at the 3-foot, 4-foot and 5-foot marks, creating a triangle. Allow two to three hours for plotting the right angle of your fence. You need basic math and landscaping skills to complete this task.

Mark the fence line with stakes and mason's string. Place a stake on the outside of the corner with a hammer and connect the corner stakes to the previous stakes with mason's string. Place another stake 3 feet out from the corner stake along the line, using a hammer.

Mark the adjacent side by positioning the end of a tape measure at the outside corner stake and out along the adjacent, connecting side. Open the tape measure to extend beyond the 4-foot mark and lock it in place, pressing the lock button.

Position the end of a different tape measure at the 3-foot stake on the first side and open it past the 5-foot mark. Lock it in place.

Angle the second tape measure toward the first, intersecting them at the 5-foot mark. This gives you the diagonal measurement. Angle the second tape measure while it's still intersected at the 4-foot mark for the perpendicular measurement.

Run a mason's string from the stake the two tape measures are at to the outside corner stake. The 3-foot and 4-foot mason's string forms the right angle for the fence. Extend or shorten the mason's string if needed.

Stake out the exact dimensions for the rest of the fence according to your map.

Things You Will Need

  • Stakes
  • Mason's string
  • Hammer
  • 2 tape measures
