How to Frame a 45 Angle in a Deck

A 45-degree angle at the corner of a deck adds a bit of pizzazz to your project.

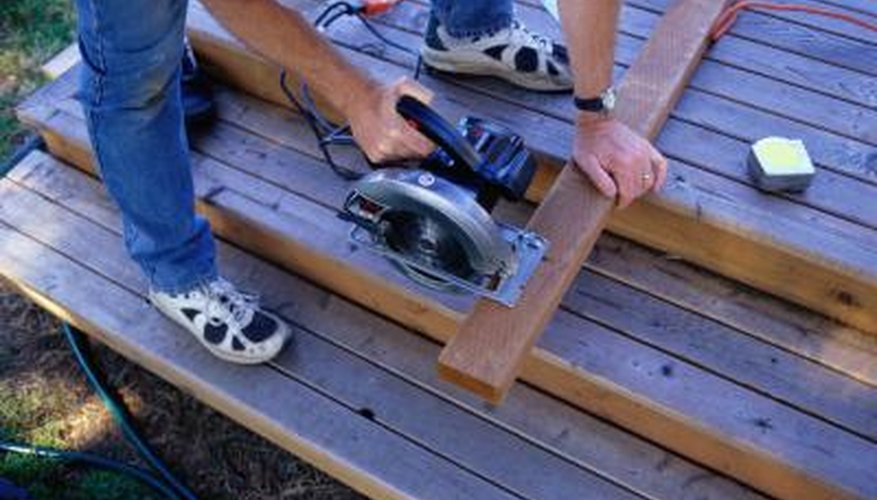

A circular saw can create miter cuts on deck framing.A circular saw can create miter cuts on deck framing.
Your deck plans will almost certainly call for two beams to meet under the corner, doing the job of supporting joists that project over the beam. This projection, called a cantilever, gives you the working room you need to nip off the ends of the joists and create a 45-degree angle.

Step 1

Construct a regular square-cornered frame for your deck, with joists, typically 2-by-6 dimensional lumber, running from the ledger under your patio door to a rim joist at the far end of the framing.

Step 2

Measure an equal distance from the corner of the framing, where the rim joist meets the end joist, as the final regular joist is called. Follow your deck plans, noting the length of the area cut away to create a 45-degree angle. Mark this distance on the rim joist and the the end joist, and carry this mark down the face of the joists with a carpenter’s square. Cut a 22 1/2-degree miter through the rim joist and the end joist with a circular saw.

Step 3

Snap a chalk line between your miter cuts across the intermediate joists. Mark each face of the intermediate joists with the carpenter’s square and miter them with the circular saw.

Step 4

Measure and cut a new rim joist to run across the cutout area, with 22 1/2-degree angles at each end. Screw the surface of the rim joist at each mitered end into the joists. Screw through the intermediate joists into the back of the rim joist at an angle; this process is called toe-screwing and hides the fasteners from view.

Things You Will Need

  • 2-by-6 dimensional lumber
  • Measuring tape
  • Carpenter's tape
  • Circular saw
  • Chalk line reel
  • Drill and screwdriver bit
  • Deck screws
