A Homemade 3 Point Rototiller

Rototillers are generally considered secondary tillage implements, something used after plowing, but you can use them for primary tillage in lighter soils than for heavy plowing. The earliest rototillers were massive steam- powered machines, but most are now the compact variety used by home gardeners who rent them.

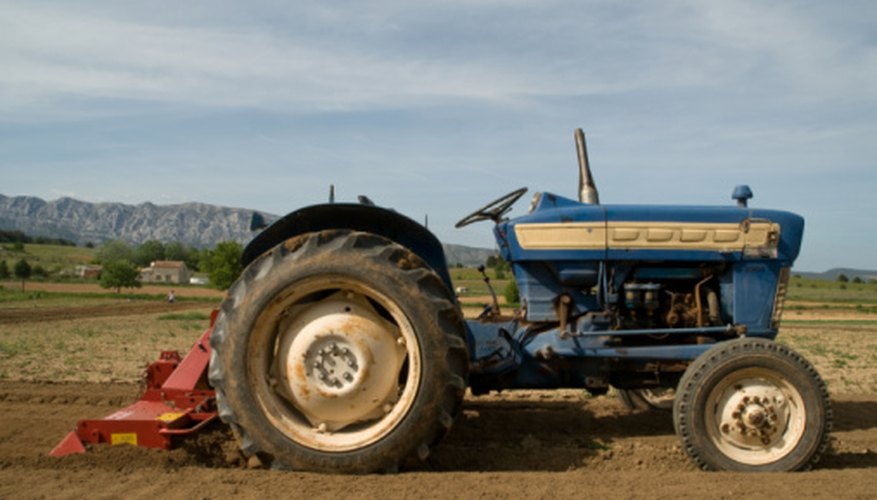

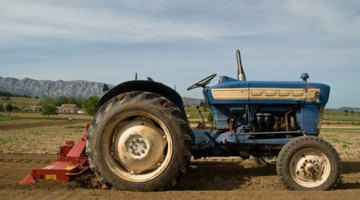

A 3 point rototiller can replace a plow in light soils.

Rototillers are generally considered secondary tillage implements, something used after plowing, but you can use them for primary tillage in lighter soils than for heavy plowing.  The earliest rototillers were massive steam- powered machines, but most are now the compact variety used by home gardeners who rent them. Towing one with a 3-point hitch behind a tractor permits a far larger rototiller resulting in cultivating much greater acreage than possible with the garden variety.  With welding skills and sufficient mechanical aptitude, you can craft a 3-point rototiller.

  1. Use a 5-foot long steel shaft 1 7/8 in diameter of high strength steel. Weld three collars 18 inches in length and 3 inches wide equidistant from one another onto the shaft. Leave 16 inches free on either side of the shaft from the outer side of the collar on the right and left end. Center discs of 1-inch thick steel over each collar and weld them into place.
  2. Create 36 L-shaped units from 1/2 thick bar steel. They should end up 4 x 2 inches. These will function as the rototiller's tines.
  3. Weld the long ends of the 12 tines to each disc, spacing them evenly all around. Weld two inches to the disc with the remaining two inches sticking straight out.
  4. Frame the unit with 1/8 plate steel. Allow enough room on each end to mount a wheel assembly and enough on one end to hold a small gasoline engine and transmission gear unit. Bolt a three-point hitch assembly to the front of the frame.
  5. Tip

    This type of project requires lots of tinkering and discussions with other individuals pursuing similar aims. Forums exist on the internet for handcrafting a wide range of agricultural equipment. Finding more detailed information regarding how to make a 3 point rototiller will open all sorts of avenues to the curious crafter.

    Warning

    Always wear the proper safety gear and proceed with caution when welding.
