How to Take Apart a GE Top Load Washer

How to Take Apart a GE Top Load Washer
Written By
Damon Koch
Damon Koch
Published: Dec 7, 2010
Updated: Nov 20, 2021
2 minute read

All three parts are removed without much effort and by using just a few basic tools.

Things You Will Need

  • Slip-joint pliers
  • Putty knife
  • Phillips screwdriver
  • Nut driver
  1. Unplug the electrical cord from the wall outlet. Unscrew the water hoses from the fittings on the back of the machine using a pair of slip-joint pliers. Remove the drain hose from the sink. Pull the washer away from the wall.

  2. Slide a putty knife between the top of the washer and the front panel about 3 inches from the left corner. Feel with the knife for a spring clip and press in on it with the putty knife to release it. Pull up on the top slightly on the left side and use the putty knife in the same way on the right side to release the clip on that side. Pull up the top, then flip it back and lean it against the wall.

  3. Unscrew the screws on the top of the front panel using a Phillips screwdriver. There will be one or two screws on each side of the top of the front panel. Remove the screws at the bottom of the front panel if there are any. The screws might be under a kick plate that is on clips that can be pulled out by hand. Pull out the front panel and set it aside.

  4. Remove the screws that hold on the back access panel using a nut driver. The panel is held on with four screws. Lift off the panel and set it aside.

The Drip Cap

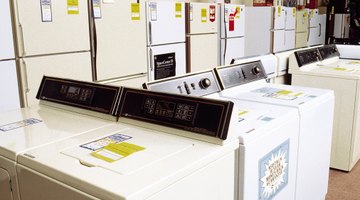

  • GE is a popular brand of washing machine.
  • Remove the drain hose from the sink.
  • Unscrew the screws on the top of the front panel using a Phillips screwdriver.
  • There will be one or two screws on each side of the top of the front panel.
  • Pull out the front panel and set it aside.
