Centrifugal Pump Disassembly Instructions

Centrifugal pumps move the bodies of water used in swimming pools, spas and wells.

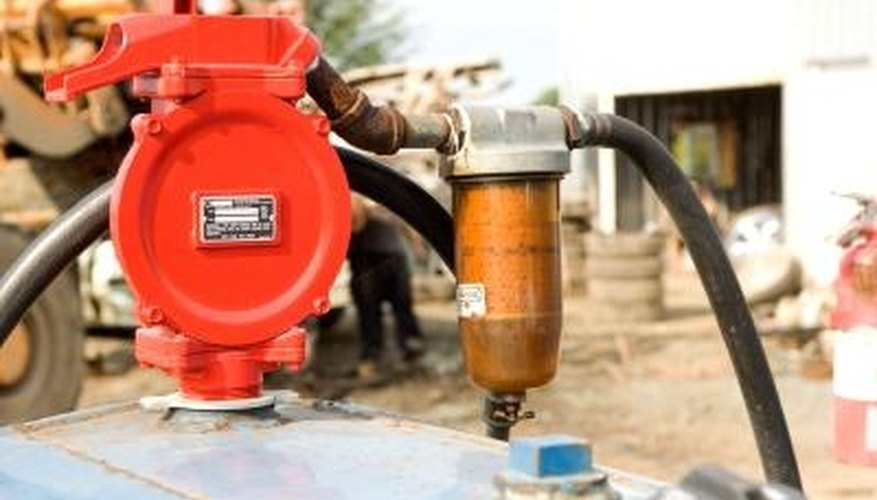

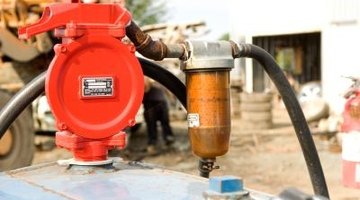

Disassemble your centrifugal pump for easier access to its moving parts.Disassemble your centrifugal pump for easier access to its moving parts.
A centrifugal pump operates using a quickly spinning impeller to create a suction that moves water through a plumbing system. Centrifugal pumps consist of a number of moving parts that require regular maintenance. Disassembling a centrifugal pump involves separating the motor from the wet section of the pump, removing the impeller and seal from the shaft, and removing the motor armature and bearing from the motor casing.

Shut down the centrifugal pump and turn off the electricity flowing to the pump at the breaker. Remove any plumbing pipes or hoses attached to the pump. Cut the plumbing with a PVC hacksaw if PVC plumbing exists.

Unscrew the bolts placed evenly around the pump housing with a wrench. Pull apart the two pieces of the centrifugal pump and set aside the wet portion.

Set a wrench onto the motor's shaft and hold it to keep it from moving. Rotate the pump impeller counterclockwise until it comes off of the shaft.

Pull the ceramic shaft seal carefully off the shaft. Pull the spring portion of the seal out of the back of the impeller.

Unscrew the screws holding the motor armature to the electrical portion of the motor. Pull the entire motor armature out of the motor. Pull the motor bearing off the back of the motor armature.

Things You Will Need

  • PVC hacksaw
  • Wrench
  • Screwdriver

Tip

  • Always replace the mechanical seal inside the pump when the pump has been disassembled. Pump seals are easily compromised once taken out of the pump system.
